Web Wiz


Web Wiz Poole Data Centre


About Web Wiz
Web Wiz operate our own Tier 2+ Data Centre located in Poole, Bournemouth, Dorset on the South Coast of the UK. The purpose built state of the art facility was designed and built by Web Wiz and completed in May 2018 and offers excellent security, resilience and connectivity.


Our Data Centre has been built from the ground up with only three aims in mind, eco-friendly, over engineering and robustness. We believe that solid investment in the best energy efficient infrastructure will allow us and our customer's continuous growth.



Eco-Friendly Credentials

Bullet The Data Centre was designed form the start to be an Eco-Friendly Energy Efficient Data Centre
Bullet Powered by on-site Solar Panel Array
Bullet Carbon Emissions offset by The World Land Trust Carbon Balanced Programme
Bullet A++ Rated Air Source Heat Pumps provide cooling
Bullet Open Frame Racks for improved air movement and reduce the need for Air Conditioning
Bullet In Rack APC UPS Systems reduces power wastage
Bullet Natural Gas Backup Generator, much cleaner burning compared to Diesel
Bullet LED Lighting
Bullet Power Usage Effectiveness (PUE) of 1.41


Power and Cooling

Bullet On-site PV Solar Panel Array with 50 Hanwha Q.Cell high efficiency Solar Panels providing renewable energy
Bullet SolarEdge Solar Panel Optimisers and Invertor for increased Solar Panel efficiency by up to 25%
Bullet Natural Gas 3 Phase Generator - to provide power to the Data Centre in the unlikely event of a power outage
Bullet APC Double-Conversion On-line UPS systems - provides power in the interim before the Gas Generators come online
Bullet Eaton UPS By-Pass Switches - allows power to be routed around the UPS systems to perform maintenance
Bullet Eaton Intelligent Rack Power Distribution Units (PDU) - IP control and metering of power to Data Centre equipment
Bullet Automatic Transfer Switching - switches power from Mains Electricity to Gas Generators in the event of a power outage
Bullet Daikin SkyAir Alpha A++ rated Air Source Heat Pumps - Redundant systems to control cooling and humidity - N+1

Bullet AquaLeak BREEAM compliance Water Leak Detection System - will cut off mains water to the facility if a water leak is detected



Connectivity and Services

Bullet Carrier Neutral Data Centre
Bullet Multiple Fibre Optic Circuits from BT OpenReach and Virgin Media connect the Data Centre to the Internet
Bullet Fibre Optic Circuits enter our Data Centre at opposite sides of the building and use suppurate ducting
Bullet Multihomed Network connecting to networks from Spitfire, Juice, and British Digital
Bullet Microwave Wireless Link providing network monitoring and backup
Bullet BGP Automatic Traffic Routing - Data Centre traffic will automatically reroute by another Fibre Optic Circuit in teh event of a failure
Bullet Redundant Cisco Gigabit Network that will reroute traffic within our Data Centre in the event of a network hardware failure
Bullet Redundant Hardware Firewalls with Stateful Hardware Failover in active-passive configuration
Bullet Redundant SourceFire Snort Intrusion Systems (IPS/IDS)
Bullet Dual Stack IPv4 and IPv6 Network (IPv6 Network Deployment)



Security & Monitoring

Bullet Hikvision CCTV system covering all entrances/exits and main areas to ensure that our Data Centre facility is secure at all times
Bullet 24-hour CCTV recording which is then held on site for review should the need arise
Bullet Monitored Intruder Alarm System covers all entrance and exists to the facility
Bullet Second Data Hall dedicated Monitored Intruder Alarm
Bullet Visual verification of all persons entering the Data Hall

Bullet Avtech Room Alert Monitoring System monitors Data Centre temperatures, humidity, smoke, fire and water leaks
Bullet C-Tec Multiple Zone Fire Alarm System monitors all areas of the facility for smoke and fire



Data Centre Gallery


Data Centre Server Racks

Data Centre Server Racks


Data Centre Redundant Cisco Gigabit Network

Data Centre Redundant Cisco Gigabit Network


Diverse Fibre Internet Connections

Multiple Fibre Optic Internet Connections from BT OpenReach and Virgin Media


Web Wiz UK Data Centre Solar Panel Array

Solar Panel Array providing on-site renewable energy to the Data Centre


Daikin A++ Rated Air Con

Data Centre Multiple Daikin SkyAir A++ Rated Air Conditioning Systems


Data Centre Overhead Cabling

Data Centre Overhead Cabling

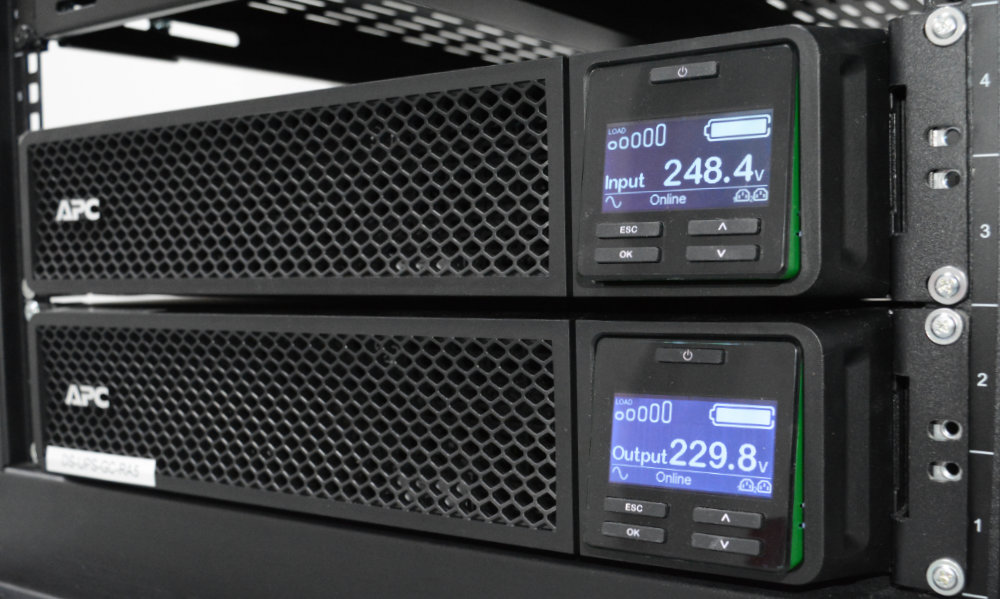

APC Double-Conversion On-line UPS

Data Centre in rack APC Double-Conversion On-line UPS Systems


Eaton UPS By-Pass Switches

Data Centre in rack Eaton UPS By-Pass Switches


Eaton Intelligent Rack Power Distribution Units (PDU)

Eaton Intelligent Rack Power Distribution Units (PDU)

CCTV System

Hikvision CCTV System covering all areas of the facility


Natural Gas Standby Generator

Natural Gas Standby Generator, to provide power if there is a mains power outage


Automatic Transfer Switch

Automatic Transfer Switch, switches power between Mains and Generators


Eaton 3 Phase Power Distbution Broard

Data Centre Eaton 3 Phase Power Distribution Board
